Amplifier

Focal Hertz Audio Force Mercury
Prism Eton Kenwood Stage
Status Priority Db-Tech Ecio
Base Acoustic Bostwick Audio dynamic Hip
Cooper Mcott Digital Research Phoenix Gold
Rainbow Sinfoni Mosconi Mmats
Mercury


Prism        ( Back )

PRISM DS-360
Power Out Put 4 ohm 4 x 90 w Power Out Put 4 ohm Bridged 2x200 w

08/08/2552 (update 09/02/2554)

SE-1.1200D class D
RMS Power @ 4Ohms 1x350W
 MAX Power @ 2Ohms 1x600W
 MAX Power @ 1Ohms 1x1200W
 Frequency Response 1Watt,4Ohm 15Hz - 150Hz(+/-3dB)
 S/N Ratio >100 dB
 T.H.D 1Watt,.4 Ohm 0.30%
 Input Sensitivity 100mVto2V /2Vto8V
 Input Impedance 10k-Ohm
 High-Pass Filter 50-500 Hz/12dB
 Bass Boost @45Hz +18dB
 Dimension (WxHxD) 18"x7"x2.36

PN-4.100
Power Amplifiler 4 Channel Output Power(RMS) 4x120 Watt Dridges @ 4 Ohm 2x150 Watt THD 4 Ohm <0.05% Frequency Response 30 Khz Damping Factor >400



RISM smart series รุ่น SM-360.4 แบบ 4ch ให้รายละเอียดเสียงดี

รายละเอียด: PRISM smart series SM-360.4

RMS Power (4ohm) 4x90 watts
RMS Power (2ohm) 4x130 watts
Bridged (4ohm) 2x180 watts
THD < 0.05 %
Channel Separation 60dB
Frequency Response 10Hz - 30 kHz
S/N Ratio 90dB
Low Level Input 200mV - 6V
Low Pass Filter 40 - 240 Hz
High Pass Filter 40 - 240 Hz
Phase Shift 0 - 180 องศา

SM-800.1D
Supply Voltage 11~15V DC Power Output 1 Ohm(RMS) 800 Watts Frequency Response 15Hz-150Hz(-3dB) S/N Ratio 90dB(+A) Input Impedance 22K Ohm Input Sensitivity 100mV-8V THD <0.05% Subsonic Freq 15Hz-50Hz Low pass Freq 40Hz-150Hz Bass Boost 0~18 dB





Digital Research         ( Back )

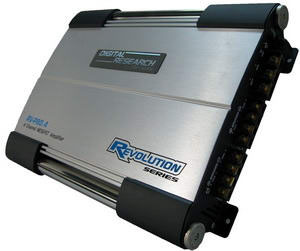

Digital Research rvp 80.4


Focal        ( Back )

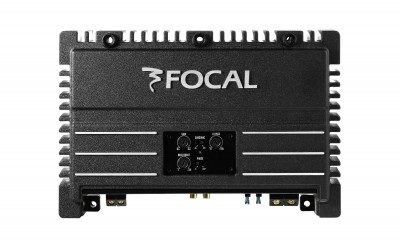

Focal Solid 1

classe AB power
amplifierspecifications channels 1
amplification class AB
nominal power (4 Ohm)1x300W RMS
nominal power (2 Ohm) 1x470W RMSfrequency response 10Hz - 150Hz
dimensions 1.75 x 11.8125 x 7.875"

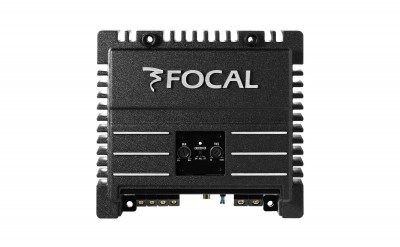

focal Solid 2

2 channel class AB power amplifier
specifications channels 2
amplification class AB
nominal power (4 Ohm)2x75W RMS
nominal power (2 Ohm)2x100W RMS
bridged power (4 Ohm)1x200W RMS
frequency response10Hz - 60kHz
dimensions1.75 x 8.667 x 7.875"

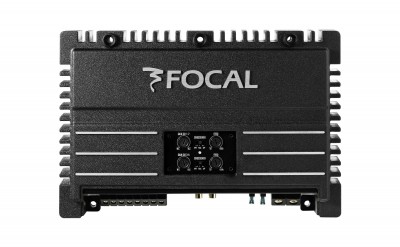

focal Solid 4

4 channel class AB power amplifier
specifications
channels4
amplification classAB
nominal power (4 Ohm)4x75W RMS
nominal power (2 Ohm)4x100W RMS
bridged power (4 Ohm)2x200W RMS
frequency response10Hz - 60kHz
dimensions1.75 x 11.8125 x 7.875"



FPS 1.500

Class D symmetric subwoofer amplifier

specifications

channels1
amplification classD
nominal power (4 Ohm)1x320W RMS
nominal power (2 Ohm)1x500W RMS
nominal power (1 Ohm)1x750W RMS
frequency response50Hz - 500Hz

FPS 2.160

2-channel class AB symmetric amplifier

specifications

channels2
amplification classAB
nominal power (4 Ohm)2x105W RMS
nominal power (2 Ohm)2x160W RMS
bridged power (4 Ohm)1x360W RMS
frequency response50Hz - 5kHz

FPS 2.300

2-channel class AB symmetric amplifier

specifications

channels2
amplification classAB
nominal power (4 Ohm)2x155W RMS
nominal power (2 Ohm)2x200W RMS
nominal power (1 Ohm)2x300W RMS
bridged power (4 Ohm)1x410W RMS
bridged power (2 Ohm)1x600W RMS
frequency response50Hz - 5kHz


FPS 4.160

4-channel class AB symmetric amplifier

specifications

channels4
amplification classAB
nominal power (4 Ohm)4x120W RMS
nominal power (2 Ohm)4x160W RMS
bridged power (4 Ohm)2x360W RMS
frequency response50Hz - 5kHz


Kenwood        ( Back )

KAC-X5D
Five Channel Digital Power Amplifier

  คุณสมบัติทั่วไป
ค่าพาวเวอร์เอาท์พุทสูงสุด
1200W
Rated Power Output (14.4V )
80Wx4 + 350Wx1 (14.4V / 4Ohm)
80Wx4 + 350Wx1 (14.4V / 2Ohm)
160Wx2 + 350Wx1 (14.4V / Bridged)
คุณสมบัติทั่วไป
Class D Amplifier Circuit
2ohms Load Capability
Reference Fit
Removable Top Plate
Cooling Fan
Extruded Aluminum Heat Sink Desion
Power MOS-FET Switching Power Supply
Triangle & Protection Indicator
Built-in Variable Low-pass Filter 50-200Hz (-12dB/oct)
Built-in Variable Low-Pass Filter (50-200Hz,-24dB/oct) (SUB)
Built-in Variable High-pass Filter 50-200Hz (-12dB/oct)
Size: W 235.0mm x H 55.0mm x D 192.0mm

KAC-X41
4 Channel Power Amplifier
2009 NEW MODEL



  คุณสมบัติทั่วไป
  Files & Resources
MAX Power:1200W




Hertz        ( Back )

Hertz HE 1 D

Features

-Output Power (RMS)
-200W x 1 @4-ohm

-320W x 1 @2-ohm

-450W x 1 @1-ohm

-Low Pass Filter: 40 - 250Hz @24dB/Oct (L+R)

-Subsonic: Hi-pass / 15 - 40Hz @24dB/Oct

-Output Phase Control: 0/180 Degress

-Bass Boost: 0-12dB @50Hz

-Bandwith (-3 dB): 15 - 250Hz

-S/N Ratio (A weighted @1V): 100dBA

-Damping Factor (100Hz @4-ohm) >150

-Pre-In sensitivity: 0.3-5Volts

-Pre-In impedence: 15 kohms

-Speaker-In sensitivity: 1.4-24Volts

-Speaker-in impendence@ 470 Ohms

-Load impendence 1 Ch: 4-1hms

-Power supply voltage: 11 - 15Volts

-Idling current: 0.8A

-Idling current when off: 0.04mA

-Consumption @1ohm, 14.4VDC: 23A

-Remote In: 6-15 VDC - 1mA

-Remote Out: 12 VDC - 50mA

-Automatic Turn On/Off with speaker in

-Fuse: 2x30A

-Dimensions (mm): 266 x 389 x 63.5

More

Hertz HE 2

Features HE DESIGN PHILOSOPHY After the design of EP amplifiers, the Elettromedia R&D team focused on a very hard goal: to provide the traditional Hertz sound and power through an amplifier at a more affordable price while maintaining the reliability and performance standards that made the Hertz EP series such a success.
Amp Type 2 Channel
Power Output 400-500
Amp Features Speaker Input terminals
Load Imedence 2 Ohm Stereo, 4 Ohm

More

Hertz HE 4

The Hertz HE4 is a four-channel, 800W (Max) amplifier that can be bridged in dual mono as well for utmost flexibility; it is the ideal choice to upgrade your factory system: pre-amplified inputs as well as hi-level inputs offer the possibility for the HE 4 to be interfaced with any head units, including factory OEM systems. Real 12dB/Oct. continuously adjustable (40 to 400Hz) active crossover with Lo-Pass/Hi-Pass or Full Range settings on each pair of channels ensures the best acoustic performance of your car audio system especially in front plus subwoofer application. The advanced electronics and the optimized cooling system ensure the HE 4 to provide high power, even under difficult conditions.
  • 800W Max Power
  • 70W x 4 RMS (4 ohm)
  • 100W x 4 RMS (2 ohm)
  • 3 channel mode: 70W x 2 (4ohm) + 200W x 1 (4ohm)
  • 100W x 2 (2ohm) + 200W x 1 (4ohm)
  • 800W Max Power
  • 70W x 4 RMS (4 ohm)
  • 100W x 4 RMS (2 ohm)
  • 3 channel mode: 70W x 2 (4ohm) + 200W x 1 (4ohm)
  • 100W x 2 (2ohm) + 200W x 1 (4ohm)
  • Bandwith (-3 dB): 7 - 45Hz
  • S/N Ratio (A weighted @1V): 104dBA
  • Damping Factor (100Hz @4-ohm) >150
  • Pre-In sensitivity: 0.3-24Volts
  • Pre-In impedence: 15 k ohms
  • Speaker-In sensitivity: 1.4-24Volts
  • Speaker-in impendence@ 470 Ohms
  • Power supply voltage: 11 - 15Volts
  • Idling current: 1A
  • Idling current when off: 0.02mA
  • Consumption @2ohm, 14.4VDC: 25A
  • Remote In: 6-15 VDC - 1mA
  • Remote Out: 12 VDC - 15mA
  • Automatic Turn On/Off with speaker in
  • Fuse: 2x20A
  • Dimensions (mm): 267 x 393 x 63.5
More


Priority        ( Back )
Model : PT-8105 FDD
- แอมป์ชนิด 5 Channel  Class D ขนาดเล็กที่ให้กำลังสูงถึง 80W x4Ch + 200W
- วงจรชนิด Full Range Digital ให้ความนิ่งสูง
- สเตอริโอ ที่ 2 โอห์ม
- สามารถปรับเบสบูสท์ : 0 ถึง 18 db ที่ 45 เฮิรท์
- ค่าความเพี้ยนต่ำกว่า 0.02%
- ให้กระแสไฟที่นิ่ง
- เหมาะกับลำโพงที่ช่วง 2 - 8 โอห์ม
- สามารถเปิดใช้งานได้ตลอดโดยไม่มีปัญหาเรื่องเความร้อน
- พร้อมด้วยไฟแบล๊กไลท์สีฟ้า ( blue back light ) สวยงาม
- พร้อมฟังชั่นการป้องกันกระแสเกินและความร้อนเกิน
- High- pass Crossover : 50 - 500 เฮิรท์

Model : PRD-D2
- เพาเวอร์แอมป์ Class - D mono bock ขนาดกำลังวัตต์ 3,100 วัตต์ ที่ 1 โอห์มตัวซิงค์สีเงิน ไดคัตสวยงาม จุดต่อลำโพง และ POWER เป็นแบบ Nickel Plated

- RCA in - put และ out - put แบบ Nickel Plated สามารถต่อโหลดได้ 1 โอห์ม วงจร Moster ทั้งระบบภาคขยาย

- ภาคจ่ายไฟ มีวงจรปรับ Gain วงจร Low-Pass วงจร Sub Sonic วงจร Bass Boots มีวงจรปรับ Phase 0-180 ?

- มีรีโมท Bass Boots Control แบบอิสระ

- มีระบบป้องกันการ Overload, Short และไฟรั้วเข้าลำโพงมีไฟ Led

- แสดงผลการทำงานของเพาเวอร์แอมป์แอมป์

RMS POWER OUTPUT

@ 4 Ohms =  450 watts

@ 2 Ohms =  1050 watts

@ 1 Ohms =   1550 watts

MAX POWER OUTPUT

@ 4 Ohms =  1500 watts

@ 2 Ohms =  2200 watts

@ 1 Ohms =   3100 watts


  • Model : PRD-D8
    พาวเวอร์แอมป์CLASS -  D  mono bock
  • รุ่นพิเศษผลิตด้วยมือ ( Hand Made Super Production ) จากประเทศเกาหลี
  • ขนาดกำลังวัตต์   8,000 วัตต์ ที่ 1 โอห์ม RMS ตัวซิงค์สีดำ ไดคัตสวยงาม
  • จุดต่อลำโพง และPOWER เป็นแบบ Nickle Plated RCA in-put และ out- put  แบบ Nickel Plated
  • สามารถต่อโหลดได้ 1 โอห์ม ใช้เทคโนโลยีพิเศษ “Daisy Chain”
  • สำหรับการบริจ (Bridged) 2 เครื่องที่  2 โอห์ม ซึ่งจะให้กำลังที่เหนือกว่า 1 โอห์ม วงจร Sub Sonic
  • มีวงจรปรับ  Phase 0-180 องศา สามารถรองรับกำลังไฟ (Power Supply

Model : PT-445BL
- Channels 4/3/2 channel - Input Sensitivity 200mV – 2V

- RMS Power ( 4 ohm) 4 x 50 watt - Input Impedance 22 kohm

- RMS Power ( 2 ohm) 4 x 80 watt - Subwoofer Filter 50 – 300 Hz/ 12 dB

- RMS Power bridged ( 4 ohm) 2 x 160 watt - High Pass Filter 120 – 3KHz/ 6 dB

- Frequency Response 10Hz – 30 kHz - Fuse Rating 30 A

- Signal to Noise Ratio > 98 dB - THD < 0.1 %

เป็นแอมป์เรืองแสงในเวลากลางคืน เป็นรุ่นเดียวกันกับแอมป์ตระกูล PRX- 445 J ซึ่งได้รับความนิยมมากกว่า 5 ปี

ในเรื่องของความคงทนและน้ำเสียงที่สดใสจนมาถึงออกรุ่นใหม่ใน ซีรี่ส์ PRX- 445 BL ซึ่งได้รับการปรั

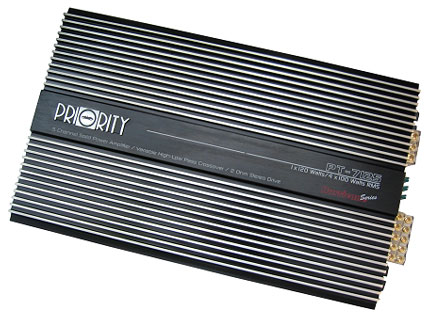

Model : PT-7125
เพาเวอร์แอมป์ CLASS AB 5 CH รุ่นพิเศษ HURRICANE SERIES มีกำลังวัตต์ 75 วัตต์ ( RMS) x 4 CH + SUB 120 W ? 1 ตัวซิงค์สี MIDNIGHT BLUE ไดคัตสวยงาม มีความพิเศษในด่านภาคจ่ายไฟ 2 ชุดแยกอิสระ สามารถจ่ายไฟให้ภาคขยายทำงานได้เต็มประสิทธิภาพ เพื่อความสมบูรณ์ของเสียงที่หนักแน่น ต่อเนื่อง และภาค PRE TONE ให้ความละเอียดที่ชัดเจนโปร่งใส แยกสัญญาณ LOW / HIGHT ซ้าย – ขวา SUB SONIC ตัดความถี่ต่ำ กว่า 30 Hz ออกไปในระบบ ทำให้เสียงไม่สั่นค้าง กระชับ Dimensions : 249 mm (W)? 54.5 mm(H)? 402 mm ( L)

Model : PRX-445J
- 4/3/2 CH ( 4 x 100 Watts RMS @ 4 ohm)

- RMS Power 2 ohm 4 x 95 Watts

- Signal to Noise Ratio > 98 dB

- THD < 0.05%

- High Pass Filter 50-800 Hz / 6 dB

- Low Pass Filter 30-500 Hz / 12 dB

- Dawping Factor > 120

- Dubble Magnet Strontium 80 Oz

- Impedance 4 Ohms

Model : PRC-850.4
- เพาเวอร์แอมป์ 4 CH (CLASSIC SERIES)

- กำลังขับ 85 W x 2 CH (Front) + 100 W ? 2 CH (REAR)

- เล่นได้ทั้ง4 CH, 3 CH, 2 CH มี CROSSOVER ในตัว ( HI-PASS, LOW-PASS)LOW FREQUENCY 30-120 Hz HIGHT FREQUENCY 120-800 Hz

- มี Boot Bass 0- +12 dB ซึ่งได้รับการปรับปรุงให้ดีขึ้นอีก

Model : FRX-250J
2 CH ( 4 x 120 Watts RMS @ 4 ohm)

- RMS Power 2 ohm 1 x 320 Watts

- Signal to Noise Ratio > 98 dB

- THD < 0.05%

- High Pass Filter 50-800 Hz / 6 dB

- Low Pass Filter 30-500 Hz / 12 dB (Boost Bass Control)

Model : FRX-5504

- เพาเวอร์แอมป์ CLASS -AB SUPER Production series

- สำหรับเล่นเครื่องระดับ AUDIO PHILE ที่ต้องการพลังและน้ำเสียงที่ดี และประหยัด

- ภาคจ่ายไฟให้ใหญ่ขึ้นและสมบูรณ์ขึ้น รวมทั้งภาคขยายทรานซิสเตอร์ MOSFET

-ให้เสียงที่คมชัด และหนักแน่นมากกว่าเดิม

- วงจรครอสโอเวอร์มีให้เลือกทั้งแบบ FULL, LOW, Hi

- ปุ่มปรับแบบเลือกความถี่ได้ ตัวซิงค์ขึ้น DICUT ลายเส้นสวยงาม

- กำลังขับ 65 W ? 4 CH

- ตอบสนองความถี 10 Hz- 35 KHz

Model : PRD-D1200
- Output Power max @1 : 1200 W

- Output Power max @2 : 820 W

- Output Power max @4 : 510 W

- Bridge Output Power max @ BG4 : 1700 W

- T . H . D : < 0.3%

- S / N Ratio : > 95 dB

- Input Sensitivity : 0.25 ~ 5.5 V

: Variable 40 ~ 250 Hz

- Low Pass Filter : @ 24 dB / oct

: Static P . C board

- Subsonic Filter : @ 24 dB / oct

- Bass Boost : @ 45 Hz 0~+18 dB

- Phase Control : 0, 180

- Fuse Rating : AUTO TYPE 30Ax2

Model : FRX-5102
- เพาเวอร์แอมป์ CLASS -AB SUPER Production series

- รุ่นใหม่ล่าสุด ที่ถูกพัฒนาขึ้น สำหรับเล่นเครื่องระดับ AUDIO PHILE ที่ต้องการพลังและน้ำเสียงที่ดี และประหยัด

- ภาคจ่ายไฟให้ใหญ่ขึ้นและสมบูรณ์ขึ้น รวมทั้งภาคขยายทรานซิสเตอร์ MOSFET ที่ถูกพัฒนาให้เสียงที่คมชัด และหนักแน่นมากกว่าเดิม

- วงจรครอสโอเวอร์มีให้เลือกทั้งแบบ FULL, LOW, Hi

- ปุ่มปรับแบบเลือกความถี่ได้ ตัวซิงค์ขึ้น DICUT ลายเส้นสวยงาม

- กำลังขับ 130 W ? 2 CH ตอบสนองความถี่ 10 Hz- 35 KHz

Model : FRX-5102
- เพาเวอร์แอมป์ CLASS -AB SUPER Production series

- รุ่นใหม่ล่าสุด ที่ถูกพัฒนาขึ้น สำหรับเล่นเครื่องระดับ AUDIO PHILE ที่ต้องการพลังและน้ำเสียงที่ดี และประหยัด

- ภาคจ่ายไฟให้ใหญ่ขึ้นและสมบูรณ์ขึ้น รวมทั้งภาคขยายทรานซิสเตอร์ MOSFET ที่ถูกพัฒนาให้เสียงที่คมชัด และหนักแน่นมากกว่าเดิม

- วงจรครอสโอเวอร์มีให้เลือกทั้งแบบ FULL, LOW, Hi

- ปุ่มปรับแบบเลือกความถี่ได้ ตัวซิงค์ขึ้น DICUT ลายเส้นสวยงาม

- กำลังขับ 130 W ? 2 CH ตอบสนองความถี่ 10 Hz- 35 KHz



Mcott        ( Back )

Mcott MC 400.4
4 Ch

Mcott MC 1200.1 D
เพาเวอร์แอมป์ คลาส D โมโนบล็อก รุ่นใหม่จากฝีมือการออกแบบที่มุ่งเน้นความลงตัวและสมรถนะการทำงาน รองรับการนำไปใช้งานในชีวิตประจำวัน ด้วยตัวเครื่องที่แข็งแกร่งบึกบึน ผลิตจากอลูมิเนียมฉีดขึ้นรูป ให้การระบายความร้อนได้อย่างมีประสิทธิภาพ มีฟังก์ชั่นอำนวยความสะดวกในการใช้งานที่พร้อมมูล เหมาะสำหรับนักเล่นเครื่องเสียงรถยนต์ที่ต้องการเพาเวอร์แอมป์ คลาส D สำหรับขับลำโพงซับวูฟเฟอร์ที่ให้พลังขับเคลื่อนที่หนักแน่นสมจริง

จุดเด่น
-โครงสร้างเน้นความแข็งแกร่ง
-วงจรภาคขยาย ระบบ คลาส D โมโนบล็อก
-วงจรอิเล็กทรอนิกส์ครอสฯ  LPF
-ปรับจุดตัดความถี่ได้ในย่านกว้าง
-มีฟังก์ชั่นยกเบส
-สามารถปรับเฟส 0-180 องศา
-มีรีโมทเบสแบบสายต่อพ่วง

รายละเอียด ข้อมูล
รูปแบบ เพาเวอร์แอมป์ โมโน คลาส D

กำลังขยายขาออก

4 โอห์ม (วัตต์ RMS) 340x1
2 โอห์ม (วัตต์ RMS) 600x1
1 โอห์ม (วัตต์ RMS) 1000x1
ความเพี้ยนรวมเชิงฮาร์โมนิก 0.01%
อัตราส่วนสัญญาณ/สัญญาณรบกวน 100 ดีบี
อัตราการตอบสนองความถี่ตลอดย่าน 15-250 เฮริตซ์ +/-3 ดีบี
แดมป์ปิ้งแฟกเตอร์ >120
จุดตัดความถี่อิเลกทรอนิกส์ครอสฯ 50-250 เฮริตซ์ 12 ดีบี/ออกเตฟ
วงจรยกเบส +12 ดีบี
วงจรควบคุมเฟส 0-180 องศา
ความไวขาเข้า 153 มิลลิโวลท์-5.6โวลท์
อิมพีแดนซ์ขาเข้า 10 กิโลโอห์ม
อิมพีแดนซ์ขาออก 100 โอห์ม
อัตรากินกระแสสูงสุด 120 แอมป์
มิติ 435x261x57.5 ม.ม.




Cooper        ( Back )

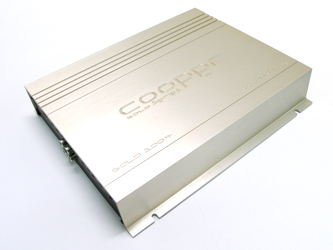

Cooper Gold 200.4
Cooper co 2200.1 d

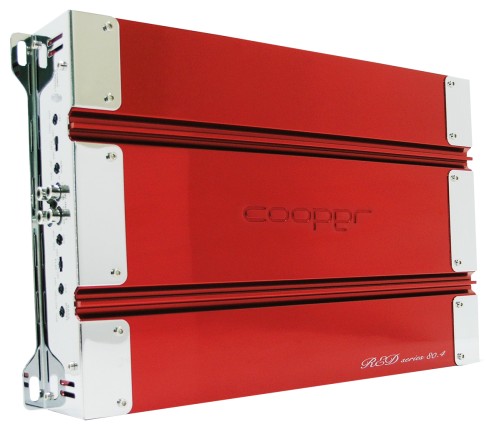

Cooper 80.4

Cooper 1800.1D


Audio Dynamic         ( Back )

AD AUDIO : AD 480
แอมพ์ 4 ch.   เพาเวอร์แอมป์ AD480 กำลังขับ500วัตต์ 4ชาแนลกำลังขับสูงสุด 500W
กำลังขับต่อเนื่อง 60W RMS x 4 (4 ohms@14.4V 0.08% THD)
กำลังขับต่อเนื่อง 160W RMS x 2 (4 ohms@14.4V 0.08% THD)



Base

BASE : CK 1200D BASE ACOUSTICS รุ่น CK 1200.1 D รายละเอียดทางเทคนิค ประเภทแอมพ์ CLASS D กำลังขับที่ 4 โอห์ม 500 วัตต์ RMSกำลังขับที่ 2 โอห์ม

Base Acoustic CK-3000D แอมป์คลาส D 1,500W
(3,000W peak)
Supply Voltage.................................11-15V DC

Power output @ 4 Ohms...................600Wx1

Power output @ 2 Ohms..........................1000Wx1

Power output @ 1 Ohms................1500Wx1

Frequency Response...................17Hz-180Hz (-3db)

Signal Noise Ratio..................................90db

Input Impedance...........................20K Ohm

Input Sensitivity............................100mV-6V

T.H.D................................................<0.05%

Bass boostFreq.....................................30Hz-80Hz

Low Pass crossover Freq......................40Hz-180Hz

Subsonic...........................................17Hz-50Hz

Bass Boost.......................................0-12db



Wars        ( Back )

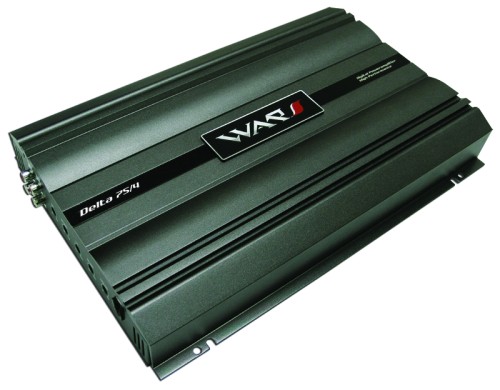

Wars 75.4
Wars 750.1


Db-Tech        ( Back )


DB TECH BRUNO 2 Mr4

Features:
2 Ohm Stable Amplifier
Hi-Level Input Option
Variable highpass filter 40-240Hz.
Vaiable low pass filter 40-240Hz.
Crossover Selection Switch LPF / FULL / HPF
Mosfet stable power supply
Thermal and short protection.
Bass Boots Selection Switch 10dB On/Off @ 45Hz

Specification:
RMS WATT @ 4 ohm 150 W X 2ch
RMS WATT @ 2 ohm 280 W X 2ch
BRIDGE @ 4 Ohm 450 w x 1ch
Frequency Response 10Hz-30Khz
THD 0.05% S/N Ratio 90 dB
Separation Channel 55 dB
Input Sensitivity 200mV-5V
Damping Factor > 200
Input Impedance 10K ohm
Crossover HPF 40Hz - 240Hz / LPF 40Hz - 240Hz




DB TECH BRUNO 4 Mr4

Features:
2 Ohm Stable Amplifier
Hi-Level Input Option
Variable highpass filter 40-240Hz.
Vaiable low pass filter 40-240Hz.
Crossover Selection Switch LPF / FULL / HPF
Mosfet stable power supply
Thermal and short protection.
Bass Boots Selection Switch 10dB On/Off @ 45Hz

Specification:
RMS WATT @ 4 ohm 60 W X 4ch
RMS WATT @ 2 ohm 140 W X 4ch
BRIDGE @ 4 Ohm 250 w x 2ch
Frequency Response 10Hz-30Khz
THD 0.05% S/N Ratio 90 dB
Separation Channel 55 dB
Input Sensitivity 200mV-5V
Damping Factor > 200
Input Impedance 10K ohm
Crossover HPF 40Hz - 240Hz / LPF 40Hz - 240Hz






Status        ( Back )

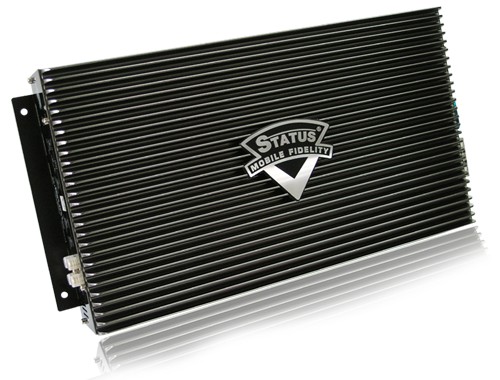

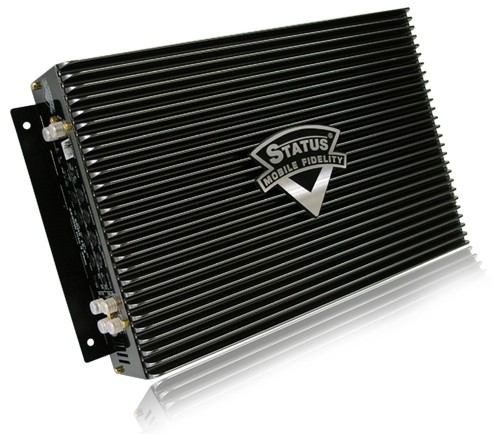

Status 200.2 Status 60.4 Status80.4

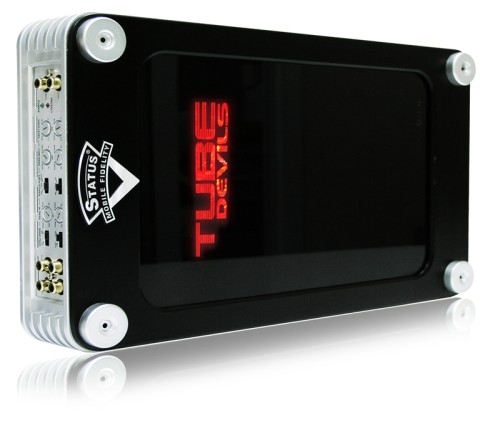

Status Tube devil Vac 80.4 Status 1200.1 D Status 2500.1D

Audison        ( Back )

Audioson Th Quattro

The Thesis TH amplifiers are manufactured using state-of-the-art analog and digital technology. Class A amplification stage, multi-standard analog and digital inputs and the control of the amplifier through a microprocessor make this product the most evolved among the Audison range.

TH quattro is a multi-channel amplifier fully configurable by the microprocessor. The four-channel configuration enables universal use of this amplifier for no-limit quality and functionality.

More

Audioson HV Venti

Audison has always aimed at the highest quality. Every product is unique. It is designed and developed in order to join the very best worldwide production; its special features make it peerless. Sometimes, however, choices have to depend on technical reasons, on the fact the product must be easy to use, on market demands. The Thesis brand, which indicates absolute Hi-End audison products, aims at escaping this indisputable reality.

Thesis doesn't want to be a complete line of products, since only when Audison continuous research proves that something really special in terms of ideas, performances, materials may be created, can the development of a Thesis product begin.

If a product doesn't meet these "utmost" features, it will not be a Thesis, although it will sport the Audison brand, which always means top level performance.

Thesis is a direct link between audiophile designers and audiophile enthusiasts, who always, simply, look for the best in a common passion: listening to music.
Load Imp.
Dual Mono
Mono
4 Ohm
2x200 W
1x800 W
2 Ohm
2x400 W
1x1300 W
1 Ohm
2x650 W

More



Eton        ( Back )

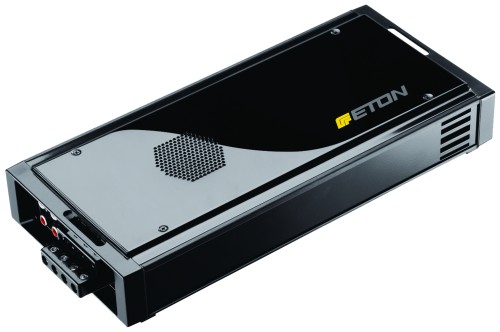

Eton MA 75.4

The new Eton 75.4 is a 4 channel amplifier that can power systems as well as a combination of loudspeakers and subwoofer. It is the pendant to the 2 channel alternative 125.2, which rated power is nearly doubled. It´s warm and open sound character makes the 75.4 ideal for the full active use with a 2 way system. Also partly active solutions are practicable. The amplifier is equipped with a micro processor which diagnoses errors. Therefore overheating, shorts or overvoltage are no danger for the amplifier.
Dimensions LxBxH: 311x136x44,9 mm
Technical Data MA 75.4
Channels 4
Output power (RMS) 4 x   70 W @ 4 Ω
4 x 125 W @ 2 Ω
2 x 250 W @ 4 Ω bridged
T.H.D. < 0,05 %
Frequency response 10 Hz - 50 kHz
S/N ratio > 92 dB
Damping factor > 850
Input sensitivity > 0,25 V - 4 V
x-over Front: Full/Lowpass/ Highpass
Rear: Full/ Lowpass/ Highpass
Front: 55 Hz-550 Hz
Rear:  55 Hz-550 Hz
Bast Boost adjustable < 0,15 dB

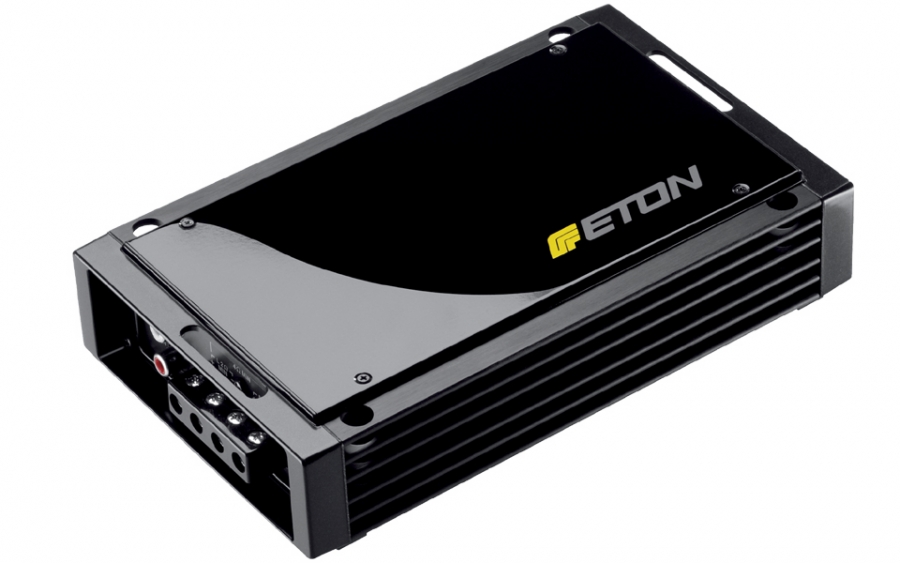

Eton MA 125.2


The new Eton MA amplifier series has excellent sound results with minimal dimensions. The 2-channel MA 125.2 is not even as big as half a DIN A 4 page.  The amplifier works with minimal currents and can therefore be very easily be built in everywhere in the car, also behind cleadings and into a glove box for example.
The mA 125.2 meets the expectations of many of our customers who want to enjoy perfect sound but hide the technics as much as possible. Moreover small amplifiers mean less weight, which can be fuel-saving as well as performance enhancing. Really big is the sound of this amplifier - no need to hide from even the biggest amplifiers on the market.
The amplifier is equipped with a micro processor which diagnoses errors. Overheating, shorts or overvoltage are therefore no danger for the amplifier.


Maße LxBxH: 214x136x44,9 mm



Technical Data MA 125.2
Channels 2
Output power (RMS) 2 x   70 W @ 4 Ω
2 x 125 W @ 2 Ω
1 x 250 W @ 4 Ω bridged
T.H.D. < 0,05 %
Frequency range 10 Hz - 50 kHz
S/N ratio > 92 dB
Damping factor > 850
Input sensitivity > 0,25 V - 4 V
x-over Front: Full/Lowpass/Highpass
Front: 55 Hz-550 Hz
Bast Boost adjustable < 0,15 dB


Eton MA 500.1


The Eton 500.1 is a monoblock made for the use on a subwoofer only. It´s capacities are perfect for 10 and 12 inch woofers of medium sensitivity. An extern level regulator is included. The MA 500.1 can be combined with several more amplifiers of the same kind. With this it is possible that 2 or more woofers work with double rated power on one voice coil. The amplifier is equipped with a micro processor that diagnoses errors. Overheating, short or overvoltage are therefore no danger for our amplifiers.


Dimensions LxBxH: 298x136x44,9 mm

Technical Data MA 500.1
Channels 1
Output power (RMS) 1 x 300 W @ 4 Ω
1 x 500 W @ 2 Ω
T.H.D. < 0,05 %
Frequency response 10 Hz - 50 kHz
S/N ratio > 82 dB
Damping factor > 1000
Input sensitivity > 0,3 V - 3,5 V
x-over Lowpass
30 Hz-200 Hz
Bast Boost adjustable < 0,15 dB




Force FA 5000


Die FA 5000 trägt Ihre Leistung bereits im Namen. 5000 Watt Leistung an einem Ohm und in der Spitze bis deutlich über 8500 Watt sprechen eine klare Sprache. Die unlimitierte Kraft und Dynamik dieser Endstufe prädestiniert die FA 5000 für Wettbewerbe und dürfte gerade deshalb auch in der Breite viele Anhänger finden. Denn etwas robusteres gab es noch nie von ETON. Und in punkto Qualität liegen die Ansprüche und vor allem insbesondere die eigenen Maßstäbe des Unternehmens aus Neu Ulm wie immer am oberen Ende der Messlatte. Entstanden ist eine Endstufe, die aufgrund Ihrer schier unerschöpflichen Reserven komplexe Klassik ebenso beherrscht wie abgrundtiefe Bassläufe und somit einfach Spaß macht.
Einstellbarer Tiefpassfilter, Bass Boost und Subsonicfilter gehören ebenso zum Standard wie die Fernbedienung. Ein Dämpfungsfaktor über 200 sorgt für Souveränität bei jedem Programmmaterial. Weitere technische Fakten sind eine Eingangsimpedanz von 20k Ohm mit einer Eingangsempfindlichkeit von 200mV – 6 V

Technische Daten FORCE FA 5000
Kanäle 1
Ausgangsleistung (RMS)

1 x >1700 W @ 4 Ω
1 x >3100 W @ 2 Ω

1x > 5000 W @ 1 Ω

linkbar auf 11.000 W

T.H.D. < 0,05 %
Frequenzgang 10 Hz - 250 Hz
Signal / Rauschabstand > 100 dB
Dämpfungsfaktor > 200
Eingangsempfindlichkeit 200mV - 6V
Eingangsimpedanz 20kOhm
Einstellbarer Tiefbassfilter 50 - 250Hz
Wirkungsgrad @4 Ohm    90%
Einstellbarer Bass Boost 0dB-12dB
Einstellbarer Subsonicfilter 15Hz-50Hz @ 24dB
Abmessungen (BxHxL) mm 330x69x700

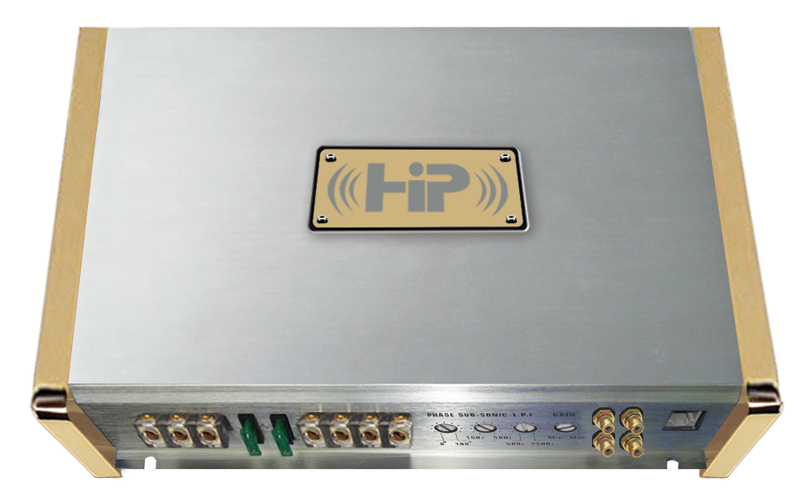

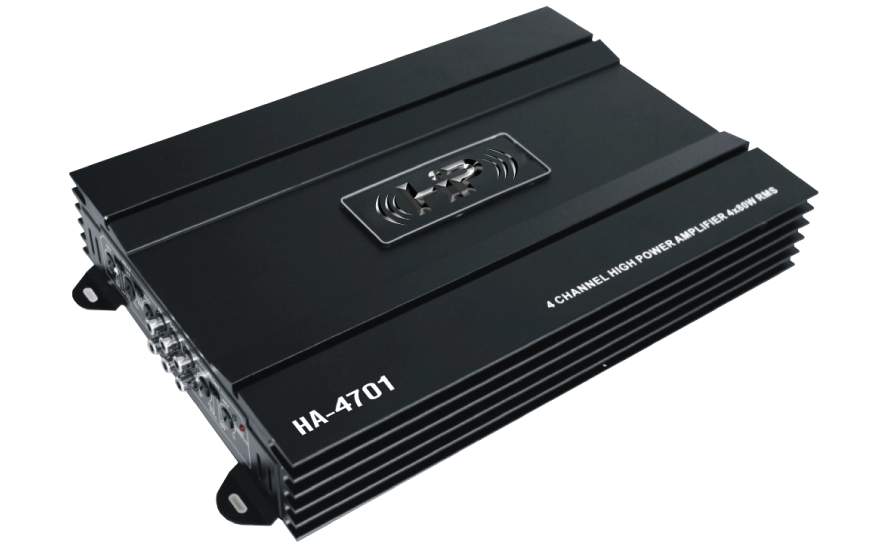

Hip        ( Back )





Mercury        ( Back )

Fact Audio         ( Back )



F3-P854

SPECIFICATION:

FEATURES:
• MOS-FET PWM Power Supply
• 4 Ohm Bridged or/2 Ohm Stereo
• 18dB Octave Crossover Slope
• Variable Low Pass Filter
• Variable High Pass Filter
• Variable Bass Boost
• Multi-Way Protection Circuitry(Thermal/OverCurrent/Speaker Short/Speaker
DC Protection)

SPECIFICATIONS:
MS@4 Ohm: 300WX2CH Bridge
• Frequency Response: 10Hz-40 KHz
• Input Sensitivity: Adjustable 200mV~6V
• Low Pass Filter: Adjustable 50Hz~500Hz
• High Pass Filter: Adjustable 50Hz~500Hz
• Operating Voltage:DC10V~15V Power Input
• Dimensions: 320mm*283mm*50mm (L*W*H)
• THD<0.05%
• S/N Ratio: >90dB
• Fuse: 40AX2

F3-P1800.1D

SPECIFICATION:

FEATURES:
• Digital Class-D Mono Block Amplifier
• MOS-FET PWM Power Supply
• Stable into 1 Ohm Load Workable
• 24dB Octave Crossover Slope
• Variable Low Pass Filter
• Variable Subsonic Filter
• Variable Bass Boost
• Variable Phase Shift
• Multi-Way Protection Circuitry (Thermal/Over Current/Speaker Short/Speaker DC Protection)


SPECIFICATIONS:
• RMS@1 Ohm 1800W
• RMS@2 Ohm 1200W
• RMS@4 Ohm 800W
• Frequency Response: 10Hz-350Hz
• Input Sensitivity:200mV~6V
• S/N Ratio :> 90dB
• Low Pass Filter: 30Hz-300Hz
• Subsonic Filter: 10Hz-60Hz
• Bass Boost : 0~18dB
• THD < 1%
• Operating Voltage:DC10V~18V Power Input
• Wired Remote Controller
• Dimensions: 350mm*283mm*50mm (L*W*H)
• Fuse: 40AX2
