Speaker

Focal Hertz Foker Mercury
Prism Eton Kenwood Stage
Status Priority Pioneer Mtx
Base Acoustic Bostwick Jvc Boston
Cooper Mcott Digital Research Phoenix Gold
Rainbow Sinfoni Mosconi Mmats
Ecio Audio dynamic Hip DLS
Audio Force Mercury


Prism      ( Back ) ( Back )

Prism Ps-6525
SPECIFICATION:

*l Max Power 150W
* l Power Handling (RMS) 75W
*l Sensitivity 94 dB (1M/1W)
*l Freq Response 60 Hz - 22 KHz

Prism PS-6522

SPECIFICATION:

l Max Power 150W

l Power Handling (RMS) 75W

l Sensitivity 94 dB (1M/1W)

l Freq Response 60 Hz - 20 KHz

PRISM SE - 265

6.5" Component Speaker

Max Power 160 W.

Nom Power 80 W

Sensitivity 95 dB(1W/1M)

Impedance 4 ohms


Prism Se-161
SPECIFICATION:
Max Power 150 w.
Nom Power 75W
Sensitivity 95 dB (1W/M).
Impedance 4 ohms






Status      ( Back ) ( Back )

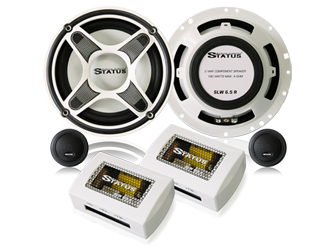

Status SLW 6.5
STATUS SLW6.5
Impedance 4 Ohm
Sensitity 1w/1m 89 dB
Frequency Respons 55 Hz - 20 kHz
Power Handling 50-180 w

Status Century 631
6.5" copolymer cone woofer RMS: 150 watts
3/4" soft dome tweeter
รายละเอียดทั้งหมด :
  • RMS: 150 watts
  • 6.5" copolymer cone woofer
  • 3/4" soft dome tweeter
  • flush/ angle- and surface-mount tweeter mounting kit
  • system-specific crossovers
  • system-specific crossovers
  • installs nearly anywhere in the vehicle
  • neodymium magnet for a smaller motor profile

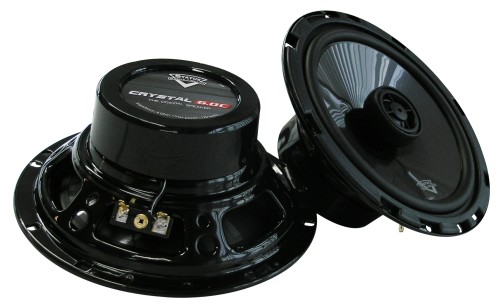

Status Crystal 6.5
Base Acoustic       ( Back ) ( Back )

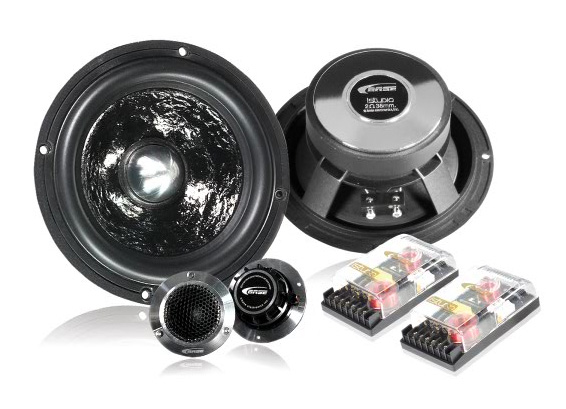

Base Istudio 6.5
ลำโพงระบบแยกชิ้น 2 ทาง รุ่นใหม่ล่าสุดจาก BASE ได้รับการออกแบบอย่างถึงพร้อมมุ่งเน้นความสามารถด้านการตอบสนองความถี่ตลอดย่านที่มีประสิทธิภาพ โครงสร้างเน้นความแข็งแกร่ง วูฟเฟอร์/มิดเรจน์ Non Press Paper Cone ขนาดเส้นผ่าศูนย์กลาง 6.5 นิ้ว ทำงานร่วมกับทวีทเตอร์โดมผ้าไหมให้ความครบเครื่องในการตอบสอนงความถี่ทุกระดับ มิติ และการแยกรายละเอียดเสียงทำได้ยอดเยี่ยม ปลายแหลมหวานพริ้วระดับ TOP CLASS

6.5” 2-way component speaker system
6 1/2” Non Press Paper Cone with Rubber edge woofer
20 Oz Magnet washer & T-York
Impedance: 2 ohms
1.5" ASV Voicecoil, Bullet Aluminium Phase Plug
25 mm Ferrofluid Cooled Neodynium Silk Dome Tweeter
12-18dB/oct crossover Network Filter
Power handling: 150 watts nom. 300 watts max.
Frequency response: 30-25,000 hz
SPL:93 dB (M/W)



Base Dx6

ลำโพง 6.5 นิ้ว แกนร่วม ยี่ห้อ Base รุ่น DX6 แบรนด์ดังจาก USA รุ่นใหม่ล่าสุด สามารถปรับทิศทางของเสียงแหลมได้ ตามต้องการ เพิ่มเน้นความคมชัดของเสียง


คุณสมบัติ คือ

- 6.5" 2 way

- White pape cone with rubber edge

- Impedance 4 Ohm

- 1" ASV voicecoil-Magnet size 10Oz

- Frequency Response 55Hz-21 KHz

- Sensitivity 89 db

- Tweeter 25 mm. Silk dome

- Rms power 60 watts


Base Reference 6.5
ลำโพงระบบแยกชิ้น 2 ทาง รุ่นใหม่ล่าสุดจาก BASE ได้รับการออกแบบอย่างถึงพร้อมมุ่งเน้นความสามารถด้านการตอบสนองความถี่ตลอดย่านที่มีประสิทธิภาพ โครงสร้างเน้นความแข็งแกร่ง วูฟเฟอร์/มิดเรจน์ Paper Cone Componde  ขนาดเส้นผ่าศูนย์กลาง 6.5 นิ้ว ทำงานร่วมกับทวีทเตอร์โดมผ้าไหมให้ความครบเครื่องในการตอบสอนงความถี่ทุกระดับ มิติ และการแยกรายละเอียดเสียงทำได้ยอดเยี่ยม ให้เสียงเบสที่หนักแน่น กลางเด่นปลายแหลมหวานพริ้ว

6 ½” 2-way component speaker system
6 1/2” Paper Cone Componde white color with Rubber edge woofer
12 Oz Magnet washer & T-York
Impedance: 2 ohms
1" ASV Voicecoil, Bullet Aluminium Phase Plug
25 mm Ferrofluid Cooled Neodynium Silk Dome Tweeter
Power handling: 120 watts nom. 240 watts max.
Frequency response: 40-25,000 hz
SPL:93 dB (M/W) / Impedance 4 Ohm



Hertz      ( Back ) ( Back )

Hertz Hsk 165
Completeness and versatility, technology and performances: all you need to easily build extraordinary systems.The Hi-Energy System line includes a wide range of complete kits, consisting in the excellent HT 25 neodymium tweeter and HV woofers, individually combined with a special crossover.

Provided with the tweeter mounting hardware, with grilles and an easy owner’s manual, Hi-Energy systems achieve the best results in every car compartment.


6" แยกชิ้น
Peak power 250w
Power Handing 125w

Hertz Dcx 165
Mylar dome tweeter.
-15mm, ultra-light ferrofluid-cooled mobile voice coil.
-High energy neodymium magnet.
-Support with accessories for external or embedded mounting.
-Low carbon content plates for maximum magnetic permeability and high heat dissipation.
-Very big magnet for mobile voice coil control.
-High energy neodymium magnet.
-Pure copper voice coil, wound on paper former, for maximum lightness.
-Copper-covered central pole; it provides extremely linear impedance and permit to easily drive the speaker.
-Water-repellent treated paper cone.
-Central phase plug, for the best off-axis response at mid-high frequencies.
-DIN size basket protected by abrasion-proof dust paint.
-Gold-plated, high current terminals.
-Silver-plated lead wires for maximum reliability and conductivity.
-High density rubber surround, glued with heat resistant adhesive.
-FOAM surround, glued with heat resistant adhesive.
-Butyl rubber protective ring, against crashes and abrasions.
-Epoxy glue for basket and motor system perfect coupling

HERTZ-DCX690-coaxial

  • 3-way 6"x9" coaxial speakers
  • 90W RMS power handling (180W peak)
  • 6"x9" woofer, 60mm mid-range, 15mm tweeter
  • High Density flux ferrite magnet
  • Water repellent pressed paper cone woofer
  • Neodymium magnet
  • Mylar dome tweeter
  • Frequency response: 45-22kHz
  • Impendence: 4-ohms
  • Sensitivity: 95 dB/Spl
  • Outer diameter: 165mm
  • Mounting hole diameter: 152mm
  • Mounting depth: 76mm

HERTZ ECX-165

  • 2-way 16.5cm coaxial speakers
  • 70W RMS power handling (140W peak)
  • High Density flux ferrite magnet
  • Water repellent paper cone
  • Neodymium magnet
  • Mylar dome tweeter
  • Frequency response: 60-23kHz
  • Impendence: 4-ohms
  • Sensitivity: 93 dB/Spl
  • Outer diameter: 165mm
  • Mounting hole diameter: 145mm
  • Mounting depth: 66mm

Hertz HSK 163.4

Hi-Energy 16,5 cm 3 Wege System

Mit der Hertz HSK High-Energy Serie bietet Hertz sehr anspruchsvollen Musik Genuss mit einer tollen Verarbeitung.

- 300 Watt Max.
- 150 Watt RMS
- 4 Ohm

Tweeter:
-Tetolon® soft dome tweeter.
-25mm ø, ferrofluid-cooled mobile voice coil.

Midrange:
-REN® Neodymium magnet; for the greatest energy in the smallest space.
-Four layer CCAW voice coil wound on a KSV former; for excellent thermal and mechanical capacity.

Woofer:
-Soft iron plates for high heat dissipation, part of the symmetrical magnetic flux motor.
-Over-sized magnet; provides outstanding energy for maximum control.

Hertz HSK 130
Completeness and versatility, technology and performances: all you need to easily build extraordinary systems.The Hi-Energy System line includes a wide range of complete kits, consisting in the excellent HT 25 neodymium tweeter and HV woofers, individually combined with a special crossover.

Provided with the tweeter mounting hardware, with grilles and an easy owner’s manual, Hi-Energy systems achieve the best results in every car compartment.

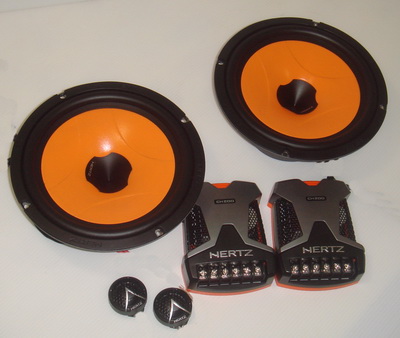

Hertz esk 165
Product Details
Woofers: water-repellent treated paper cones, phase plugs new profile, high
density rubber surround, curve memory Nomex? spider, DIN size baskets protected
by abrasionproof paint, very big magnet with vented hole, silver-plated lead wires.
Tweeters: Compact size, neodymium magnet, dome made of Alumax?, silk
surround, ultra-light ferrofluid-cooled mobile voice coil, revolving support and
accessories for factory location and flush mounting.

Crossover included
Grilles included

Technical Specifications

Component: 2 way system: EV 165, HT 18 Factory provide separate crossover
3,5kHz-6/12 dB.
Size: 165 mm (6”1/2) Woofer,
20 mm (3/4”) Tweeter
Power Handling(Watt): 200W Peak Power, 100W Continuous Program Power
Sensitivity: 91 dB/SPL
Impedance: 4?
Frequency Range: 60 Hz - 23kHz

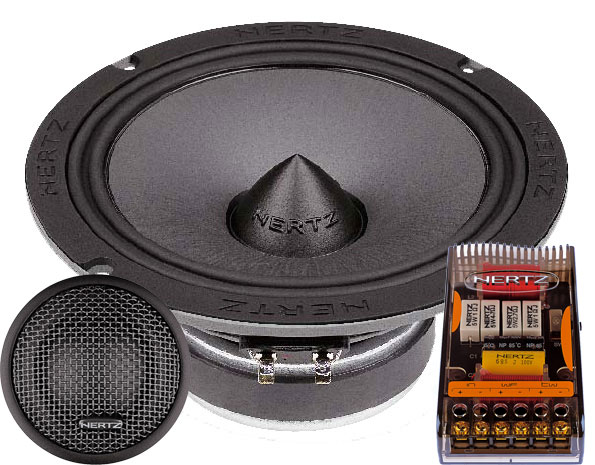

Hertz hsk 165

Hertz HSK 163.4

Hi-Energy 16,5 cm 3 Wege System

Mit der Hertz HSK High-Energy Serie bietet Hertz sehr anspruchsvollen Musik Genuss mit einer tollen Verarbeitung.

- 300 Watt Max.
- 150 Watt RMS
- 4 Ohm

Tweeter:
1 Tetolon® soft dome tweeter.
2 25mm ø, ferrofluid-cooled mobile voice coil.
3 High energy Neodymium magnet.
4 Rear acoustic chamber.
5 Revolving support and accessories for factory location and flush mounting.
6 Very flexible, high current input cable.

Midrange:
1 REN® Neodymium magnet; for the greatest energy in the smallest space.
2 Four layer CCAW voice coil wound on a KSV former; for excellent thermal and mechanical capacity.
3 Damped Mesh Fibre Cone; for extended bandwidth and smooth response.
4 V-cone®; for the best off-axis dispersion and mid-high frequency detail.
5 Anti-vibration rubber magnet cover; damps spurious vibrations.
6 Radial Venting System; for efficient thermal management.
7 Loss-less Polymer Rubber Surround; for long throw and maximum damping.
8 Grille included.

Woofer:
1 Soft iron plates for high heat dissipation, part of the symmetrical magnetic flux motor.
2 Over-sized magnet; provides outstanding energy for maximum control.
3 Pure copper voice coil wound on a KSV former; for excellent thermal and mechanical capability.
4 Vented bottom plate; improves linearity and thermal dissipation.
5 Pulp cone mixed with cotton fibre; for powerful low frequency response.
6 V-cone®; for the best off-axis dispersion and mid frequency detail.
7 Anti-vibration rubber magnet cover; damps spurious vibrations.
8 Aerodynamic die-cast aluminium basket; eliminating rear wave reflections.
9 Radial Venting System; for efficient thermal management.
10 Loss-less Polymer Rubber Surround; for long throw and maximum damping.
11 Grille included.

Three way system deriving from the combination of HV 165L woofer, HL 70 midrange and HT 25 tweeter. 3W.10 crossover, specially designed for it, is compact and easy to use; it has high quality components and provides optimised crossover points, insuring the best results in whatever car compartments thanks to the independent adjustment of midrange and tweeter emission level. Given with a rich mounting hardware, HSK 163 is very versatile and can meet various needs.


Eton      ( Back ) ( Back )
Eton A-1 160

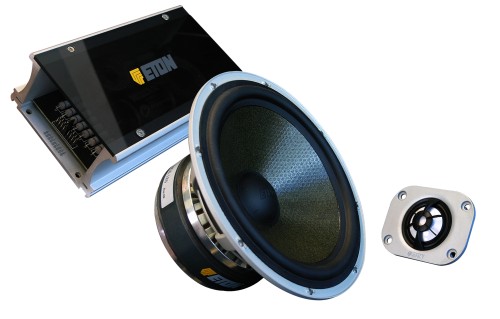

Eton Mgs 180

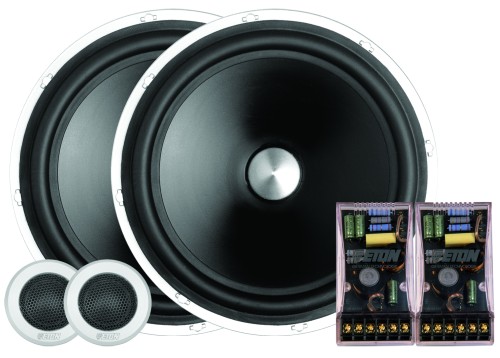

Eton Rs 160

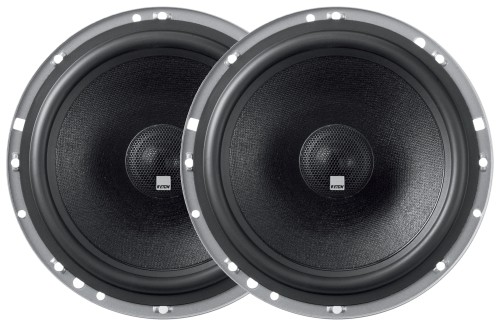

Eton Prx 170


Priority      ( Back ) ( Back )
Model : PS-165 F2
- ลำโพงแยกชิ้น 2 ทาง ขนาด 6.5." พร้อมครอสโอเวอร์
- แม่เหล็กนีโอไดเมียมขนาด 10 OZ. ให้ความกระชับของเสียงเบส
- กรวยวูฟเฟอร์ ( Woofer ) แบบโพลีฉีดขึ้นรูป ( P.P INJETTION ) ให้เสียงกลางที่กว้าง และชัดเจน
- ทวิสเตอร์ชนิดซอฟโดมขนาด 20 มิลลิเมตร ให้เสียงแหลมสดใส สะอาด
- พร้อมเม้าท์ตั้งและเม้าท์ข้างประตู
- Dust Cap แบบอลูมิเนีม ( Luminum Bullet ) ชนิดเฟสปลั๊ก
- Cone แบบขอบยางคุณภาพสูง ( Surround )
- Magnet boot หุ้มยางสวยงาม   Crossover โลโก้ ( LOGO ) ปั้มนูนขึ้นรูป
- Max. power 260 watts lmpedance 4 Ohm
- Crossover มีวงจรป้องกันทวิสเตอร์ขาดอัตโนมัติ ( PTC )
- Crossover network 2 ทาง ความลาดชัน 12 dB / octave
Model : PR-6
PR-6
-         ลำโพงแยกชิ้นขนาด 6.5"
-         Cone ชนิด คาร์บอนไฟเบอร์ พร้อมด้วยขอบยาง Surround
-         ทวีตเตอร์ชนิด Nomax ขนาด 25 mm. แม่เหล็กชนิดนีโอไดเมียม
-         ตอบสนองที่ความถี่ 38HZ - 20 KHZ.
-         กำลัง RMS ที่ 125 watts
-         กำลัง สูงสุด ที่ 280 watts
-         ความไวที่ 88 DB.
-         วอลย์คอย ชนิด KAPTON ขนาด 35 mm.




  • Model : PST-696
    ลำโพง 6 x9” 3 ทาง
  • กรวยโพลี สีฟ้าแม่เหล็ก 20 oz voice coil 1”
  • ตอบสนองความถี่ 30 Kz – 20 KHz
  • ค่าความไว 93 dB Impedance 4 Ohm
  • กำลังขับสูงสุด 180 W

  • Model : PST-62M
    ลำโพงขนาด 6 1/2 นิ้ว 2 ทาง ( coaxial)
  • ทวิสเตอร์โลหะแบบไททาเนียมกรวยวูฟเฟอร์โพลี ไพโพรลีน เคลือบเงาสวยงาม
  • ขอบเซอร์ราวด์แบบยางแม่เหล็กขนาด 8 oz เฟรมแม่เหล็กปั้นขึ้นรูปอย่างดี แบบบาง
  • เหมาะสำหรับรถที่มีพื้นที่ติดตั้งจำกัด ความหนาไม่รวมฝาลำโพง 2"
  • ตอบสนองความถี่ 45-20 KHZ ความไว 95 dB Impedance 4 ohm
  • รับกำลังวัตต์สูงสุด 100 W

  • Model : PRO-62K
    กรวย Kavla แท้ให้เสียงกลางที่โปร่ง ทวิสเตอร์ชัดเจนสดใส Magnet 25 oz ทวิสเตอร์เกรด A.S.V. ไททาเนียมโดม
  • Impedance 4 ohm
  • Sensitivity 91 dB
  • Frequency Response 50-20,000 Hz
  • Power Handing Max.150 Watts

  • Model : NP-6EM
    ลำโพงขนาด 6  1/2 นิ้ว 2 ทาง ( coaxial)
  • ทวิสเตอร์โลหะแบบไททาเนียมกรวยวูฟเฟอร์โพลี ไพโพรลีน เคลือบเงาสวยงาม
  • ขอบเซอร์ราวด์แบบยางแม่เหล็กขนาด 8 oz เฟรมแม่เหล็กปั้นขึ้นรูปอย่างดี แบบบาง
  • เหมาะสำหรับรถที่มีพื้นที่ติดตั้งจำกัด ความหนาไม่รวมฝาลำโพง 2"
  • ตอบสนองความถี่ 45-20 KHZ ความไว 95 dB Impedance 4 ohm
  • รับกำลังวัตต์สูงสุด 100 W




Bostwick      ( Back ) ( Back )

BOSTWICK SB-6T
ลำโพงระบบแยกชิ้น 2 ทาง รุ่นใหม่ล่าสุดจาก
BOSTWICKได้รับการออกแบบด้วยความพิถีพิถัน
รองรับความต้องการของกลุ่มนักเล่นเครื่องเสียงรถยนต์ที่ต้องการ
ลำโพงเสียงดีในสนนราคาย่อมเยาโครงสร้าง
จุดต่างๆได้รับการออกแบบเน้นความแข็งแกร่งเพื่อการ
ถ่ายทอดความถี่ตลอดย่านความถี่เสียงที่มีประสิทธิภาพ

จุดเด่น
-วูฟเฟอร์/มิดเรจน์ ขนาด 6.5 นิ้ว กรวยกระดาษเคลือบน้ำยา
-เฟสปลั๊กอลูมิเนียม
-โครงลำโพงอลูมเนียมดายน์-คาสท์ พ่นทราย
-วอยซ์คอยล์ ASV ขนาด 25 ม.ม.
-แม่เหล็กลำโพง 12 ออนซ์
-ทวีทเตอร์โดมผ้าไหมขนาด 25 ม.ม.
-พาสซีฟครอสฯ ความลาดชันจุดตัดความถี่ 18 ดีบี

BOSTWICK 991J
ลำโพง 6x9



Foker      ( Back ) ( Back )

Foker รุ่น FKS-620

Frequency response : 65HZ-20KHz
Sensitivity:90dB/W/M
Max Power:200W
Magnet:10oz
Voice Coil:25mm


Kenwood      ( Back ) ( Back )
KFC-X1730P
eXcelon 6.5" High Performance Component Speaker Package
คุณสมบัติทั่วไป
Peak Input Power: 300W
Component 2way speaker System
Supplied with Grilles
Supplied with bracket for Ford, Mazda, Honda and GM
Crossover Network
170mm Carbon-Glass Fiber Cone
25mm Soft Dome swivel Tweeter
High-Quality Compact Size Crossover Network
Zobel Network Circuit for Woofer
Tweeter Protection Circuit
12dB/oct Crossover (HPF/LPF)
3-Point Tweeter Attenuater
Sensitivity: 90dB at 1m
Frequency Response: 63-24k Hz
Impedance: 2 ohms
Size(WHD): 165.0mm x 165.0mm x 89.5mm
Mounting Depth: 60.5mm

KFC-M1632A
3-way Flush Mount Speaker
Peak Power 260W
2008 New Model

Peak Input Power
260W
Rated Input Power
35W
Woofer Features
160mm Injection P.P Cone Woofer
Midrange Features
40mm Water Resistance Cone
Tweeter Features
9mm Ceramic
คุณสมบัติทั่วไป
3-way 3-speaker System
Supplied with a Pair of Grille and Speaker Cable (4.5m)
New Angled Direct Sound
Specifications
Sensitivity: 91dB at 1m
Frequency Response: 35-25k Hz
Impedance: 4 ohms
Size (WHD): 158.0mm x 158.0mm x 66.3mm
Mounting Depth: 43.0mm
Net Weight: 633g (with Grille)
Magnet Weight: 150g

KENWOOD KFC-M6932A
กำลังสูงสุด
•     350 วัตต์
อัตรา Input Power
•     75 วัตต์
คุณสมบัติวูฟเฟอร์
•     ลำโพงวูฟเฟอร์ขนาด 6"x9" แบบ P.P Cone
คุณสมบัติลำโพง Mid-Range
•     ลำโพงชนิดกรวย ป้องกันน้ำ ขนาด 50มม.
คุณสมบัติ Tweeter
•     ลำโพง Tweeter P.E.I. Balance ขนาด 20มม.
คุณสมบัติทั่วไป
•     ระบบ 3 ลำโพง 3 ทิศทาง
•     พร้อมหน้ากากลำโพง 1 คู่และสายลำโพง (4.5ม.)
•     ระบบเสียงโดยตรงใหม่
ข้อมูลเฉพาะ
•     ความไวเสียง : 92dB ที่ 1m
•     ตอบสนองความถี่ : 28-25 kHz
•     ความต้านทาน : 4 ohms
•     ขนาด(ก/ส/ล) : 237.0(มม.) x 164.0(มม.) x 112.0(มม.)
•     Mounting Depth: 77.0มม.
•     น้ำหนักสุทธิ : 1,250กรัม(รวมกรอบ)
•     น้ำหนักแม่เหล็ก : 280 กรัม

•     พร้อมหน้ากากลำโพง 1 คู่และสายลำโพง (4.5ม.)
•     ระบบเสียงโดยตรงใหม่
ข้อมูลเฉพาะ
•     ความไวเสียง : 92dB ที่ 1m
•     ตอบสนองความถี่ : 28-25 kHz
•     ความต้านทาน : 4 ohms
•     ขนาด(ก/ส/ล) : 237.0(มม.) x 164.0(มม.) x 112.0(มม.)
•     Mounting Depth: 77.0มม.
•     น้ำหนักสุทธิ : 1,250กรัม(รวมกรอบ)
•     น้ำหนักแม่เหล็ก : 280 กรัม


Pioneer      ( Back ) ( Back )


PIONEER :TS-A6973E

6" x 9"   3-Way Speaker

Features

6" 9" (16 cm 24 cm) woofer/57mm cone midrange/17mm dome tweeter

PET cone midrange with urethane surround

Full depth basket for longer excursion and richer bass

Maximum input: 400 W

Nominal input: 80 W

Carbon graphite IMPP interlaced aramid/basalt fiber cone woofer

Glass-imide voice coil former for higher power handling capabilities

Silver PET film dome tweeter

Pioneer Ts-a1720c

คุณสมบัติเฉพาะ
  • 230 W MAX
  • 17cm woofer/23mm soft-dome tweeter
  • Extended pole yoke design
  • Carbon graphite IMPP cone woofer using interlaced aramid fiber
  • Butyl rubber surround for smoother response
  • Glass-imide voice coil bobbin
  • Single conex damper
  • Light weight soft-dome tweeter with neodymium magnet and magnetic fluid
  • Rear chamber for lower crossover frequency (tweeter)
  • Surface (angled), flush or invisible tweeter mounting kit
  • In-line type high-quality crossover (LPF: 6 dB/oct., HPF: 12 dB/oct.)


Jvc      ( Back ) ( Back )


 JVC CS-HX6947
* 4-Way Coaxial
* 490W Peak./80W RMS
* Twin Roll Butyl Rubber Edge
* Shallow & Slim Design
* Frequency Response: 25Hz-38,000Hz
* Sensitivity: 87.5dB/Wm
* Crossover Frequency: 4, 8, 12kHz
* Aramid Fiber+ Carbon Fiber Composite Olefin Cone Woofer
* Poly-Ether Imide Balanced Tweeter
* Poly-Ether Imide Dome Super Tweeter
* Strontium Magnet (Woofer/Midrange)
* Free Edge (Midrange)
* Heat-Resistant Voice Coil
* Mounting Depth: 84mm



Murcury      ( Back ) ( Back )


Mercury Mer 169

Mercury Mer 168C



Stage      ( Back ) ( Back )

STAGE SPL JUPITER 6.5 COMPONENT
รายละเอียด: - 15 OZ WOOFER MAGNET STRUCTURE
- PAPER CONE RUBBER EDGE
- RMS : 80W
- MAX POWER : 160W
- TWEETER VOICE COIL : 25 MM.
- NEODYMIUM MAGNET
- NOMINAL IMPEDANCE : 4 OHM
- FREQUENCY RESPONSE : 45HZ - 20KHZ
- 91 dB @ 1W/1M

STAGE SPL COAXIAL 6.5


Mtx      ( Back ) ( Back )

MTX CTX 132
Specification:

5.25-Inch 2-Way Coaxial Speaker System

Power range: 45 RMS (130 watts peak power)

Frequency response: 90 Hz - 20,000 Hz

Sensitivity: 90 dB

Impedance: 4 Ohm

Polypropylene cones with aluminum deposition are durable, efficient, and create dynamic sound.

Rubber woofer surround

Shallow mounting depth

Direct OEM replacement

MTX CTX 162

MTX CTC 130

MTX THUNDER THS652
SPECIFICATION
- 2 way component speakers
- Diameter: 16.5
Omschrijving RMS Power : 65W
Max Power : 260W
Impedance : 4 Ohm
Frequency response : 66Hz - 25kHz
Sensitivity : 91,0 dB/2,83v/1m
Tweeter : 19mm Silk dome
Tweeter Cut-out diameter : 40,6mm
Tweeter mounting depth : 13,8mm
Woofer diameter : 16,5cm
Woofer Cut-out diameter : 142mm
Woofer mounting depth : 66mm



Injected polypropylene cone with aluminium finish
Black rubber surround
2,5 cm Aluminium voice coil
Solid Aluminium phase plug
Original MTX Euro DIN basket
Oversized magnet
Rubber magnet cover with MTX logo





Boston      ( Back ) ( Back )

BOSTON S65

  - 2-way 6-3/4" speakers (pair)
- copolymer woofer cone with rubber surround
- 3/4" Type-S3 soft dome tweeter
- power range: 2-35 watts RMS (100 watts peak power)
- frequency response: 58-20,000 Hz
- sensitivity: 92 dB
- top-mount depth: 2-1/2"


BOSTON S65

- 6.5" MIDBASS
- TYPE S3 KORTEC TWEETER
- SYSTEM SPECIFIC CROSSOVER
- ADJUSTABLE TWEETER LEVEL
- MAX 110W
- NOM 55W
- SENSIVITY : 92dB
- FREQUENCY RESPONSE : 58-20,000Hz

BOSTON S-45
  • 2-way 4" speakers (pair)
  • copolymer woofer cone with rubber surround
  • 3/4" Type-S3 soft dome tweeter
  • power range: 2-35 watts RMS (80 watts peak power)
  • frequency response: 90-20,000 Hz
  • sensitivity: 92 dB
  • top-mount depth: 2"
  • warranty: 2 years

Cooper      ( Back ) ( Back )

Cooper cx 6.5

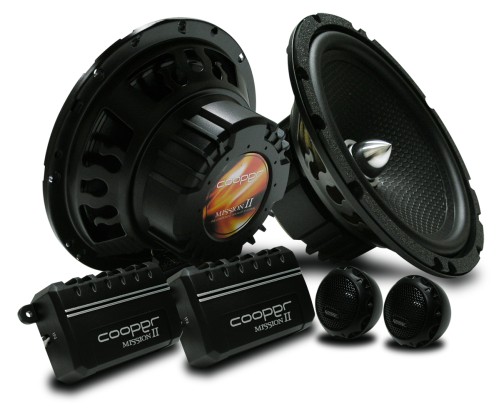

Cooper Mission 2


Mcott      ( Back ) ( Back )

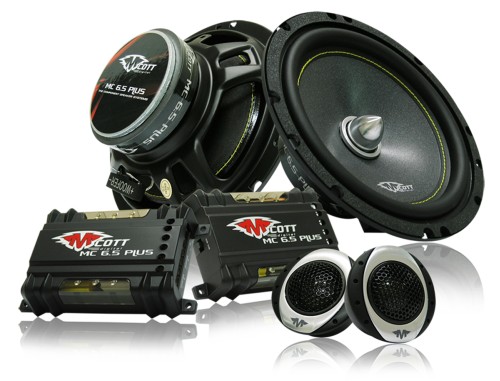

Mcott MC 6.5 Plus


Digital Research       ( Back ) ( Back )
DIGITAL RESEARCH : AS650


ลำโพงรวมชิ้น 2 ทาง ขนาด 6.5 นิ้ว
รองรับกำลังขับ 140 Wrms
ความถี่ตอบสนอง 50Hz - 22kHz
ความไว 93dB (W/M)
DIGITAL RESEARCH : CC2

Digital DR-K6

Digital Research : Kevlar DR-K6

6 1/2" Max Power 100 Watts KEVLAR cone
with rubber edge high grade magnet
coaxial car speaker system.
Sensitivity : 92 dB ( 1W/1M )
Freq. Response : 55 Hz-23 kHz


Phoenix Gold       ( Back ) ( Back )
Part Number: R65CS Category:COMPONENT SETS Description: 6.5 Inch Component Speaker

Phoenix Gold R Series component sets represent the ultimate in car audio quality, and were designed to perfectly match Phoenix Gold subwoofers. High performance mid-bass, and Mylar dome tweeter, wired through a passive crossover, these component sets were designed using state of the art acoustic engineering and built using the highest grade components available.

ลำโพงแยกชิ้น อนุกรมล่าสุดจาก PhoenixGold เพื่อคุณภาพเสียงที่ดีในระบบเสียงรถยนต์ วูฟเฟอร์ 6.5 นิ้ว กรวยกระดาษเคลือบสามชั้น โครงออกแบบให้ปราศจากการสั่นกระพือ ขอบโฟมกัน UV ทวีตเตอร์ไมล่าร์ขนาด 19 มม. พร้อมครอสโอเวอร์แยกความลาดชัน 12 dB/Oct

รับกำลังขับสูงสุด 150 วัตต์ และ 75 วัตต์ RMS ตอบสนองความถี่ 60 Hz – 20 KHz ความไวเสียง 90 dB

Part Number: R65CX Category: COAXIAL Description: 6.5 Inch Coaxial Speaker

Phoenix Gold R Series coaxial series represent the ultimate in car audio quality, and were designed to perfectly match Phoenix Gold subwoofers. High performance mid-bass and Mylar dome tweeter, wired through a passive crossover, these coaxial were designed using state of the art acoustic engineering and built using the highest grade components available.

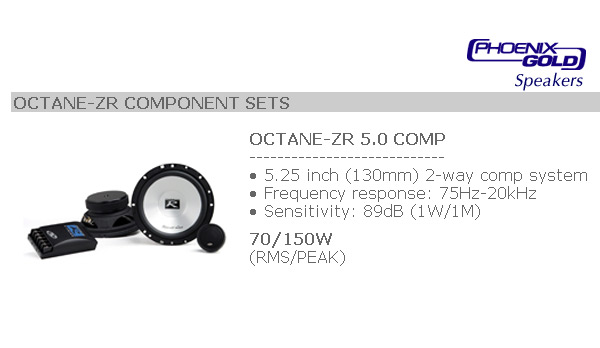

Phoenix Gold Octane-Zr 5.0

Phoenix Gold Octane-Zr 6.5


Rainbow       ( Back ) ( Back )
Rainbow Kx-165
Product Features

  • DREAM LINE KX RANGE
  • 2-way coaxial - 165mm (6.5")
  • 63 / 61 mm Mounting depth (with/without ring)
  • Max. power handling: 120W
  • Nom. power handling: 80W
  • Sensitivity : 90dB
  • Frequency response: 70 - 21.000 Hz
  • Crossover frequency: 4500Hz
  • Grilles supplied.
  • Sold as one pair of speakers

    Product Description

    Rainbow has created a reasonably-priced, premium solution for those who find that original speakers sound too flat. By upgrading our KX coaxial systems with butyl rubber surround and 15 mm foil-neodymium-tweeter, we ensure the KX coaxial systems really delivers what it promises.

    The tweeter is mounted on an axis in the acoustic centre of these 2-way coaxial systems to allow precise sound reproduction and a wide dynamic range.

    Speakers sized at 8.7 cm, 10 cm, 12 cm, 13 cm, and 16.5 cm allow the KX coaxial systems to fit into most factory assembly spaces. With a peak load of up to 80 W, a sophisticated coated natural fiber cone, and a powerful magnet system these speakers can handle even your most demanding audio requirements.

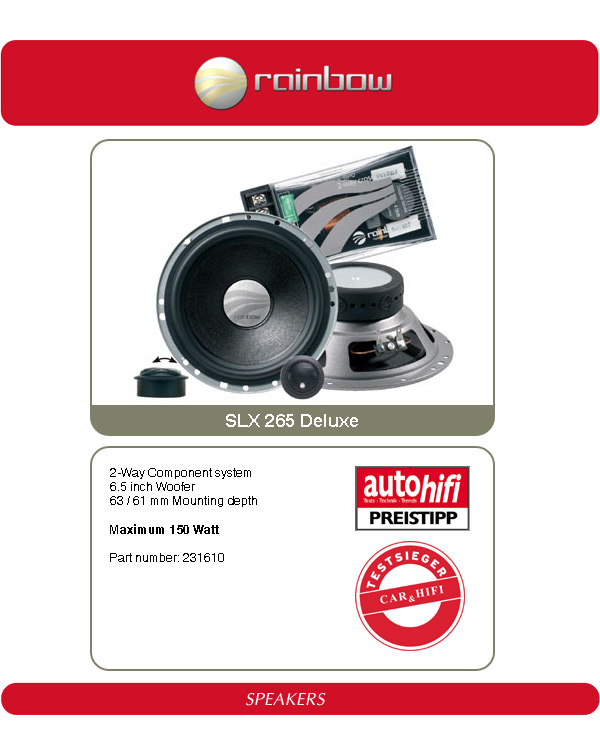

Rainbow Slx 265 Deluxe


DLS       ( Back ) ( Back )

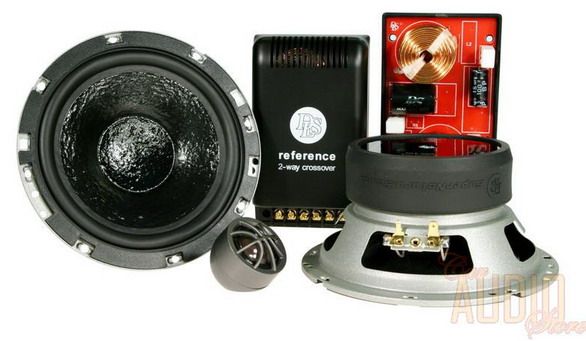

Dls R6A
Reference series R6A
is a 16,5 cm (6,5") 2-way component.
R6A is our best selling 2-way component kit over the whole world.
- Powerful magnet system.
- Cone made of non pressed paper.
- Crossovers with selectable tweeter level.
- 25 mm silk dome tweeter T25.
- Grilles are included.
  Specifications
Woofer size 16,5 cm (6,5")
Tweeter T25, 25 mm (1") silk dome tweeter
Power handling capacity 80 W RMS / 120 W max
Impedance 4 ohm
Frequency range 50 - 20 000 Hz
Sensitivity 90 dB (1W/1m)
Crossover Filter box with 6/12 dB slope (LP/HP)
Crossover point (Hz) 4500 Hz
Size of filter box 145 x 85 x 45 mm ( 5,71 x 3,35 x 1,77")
Outer diameter of woofer 165 mm (6,5")
Magnet size 100 mm (3,94")
Mounting depth 76 mm ( 3")
Mounting hole 140 mm (5,5")



Maxxsonic       ( Back ) ( Back )

Maxxsonik 650S2
Specifications
- 180 Watts Max Input Power

- 6-1/2 Inch Reflective IMPP Cone Woofer

- 10 Oz Strontium Mognet

- Butyi Rubber Edge

- 1 Inch Dome Tweeter

- Attractive Transparent Crossover Network Case


- Frequency Response 55 - 20000 Hz
- Sensitivity 92dB
- 4 Ohm Rated
- Round Punched Metal Grille
- Indudes Mounting Hardware and Wire



Audio Froce       ( Back ) ( Back )
AUDIO FORCE AF-P6.4



- 6 " 2- WAY SPEAKER SYSTEM



- 6" WOOFER PP. CONE WITH RUBBER EDGE



- 1" SOFT DOME TWEETER



- EFFICIENCY@1W/ 1M 90 DB



- POWER HANDLING 100 WATT MAX



AUDIO FORCE AF-165

AUDIO FORCE AF 165ca

Audio Dynamic       ( Back )



Mercury       ( Back )


Fact-Audio       ( Back )


F2-S65OP

SPECIFICATION:

WOOFER
• 6.5" GREY PP CONE WITH RUBBER EDGE
• MAGNE STRUCTURE [15 Oz]
• 400 W MAX. CONTINUAL POWER PER. PAIR
• 4 OHMS-IMPEDANCE
• FRE.RESP. : 55Hz-5KHz
• SENSITIVITY : 89dB/1W/1M

TWEETER
• 1" SILK DOME TWEETER
• NEODYMIUM MAGNET
• 200W PEAK POWER PER PAIR
• 80W CONTINUAL POWER PER PAIR
• FRE.RESP.: 1500Hz-22KHz
• SENSITIVITY: 91dB/1W/1M
• CROSSOPVE: 12dB TWO WAY DESIGN

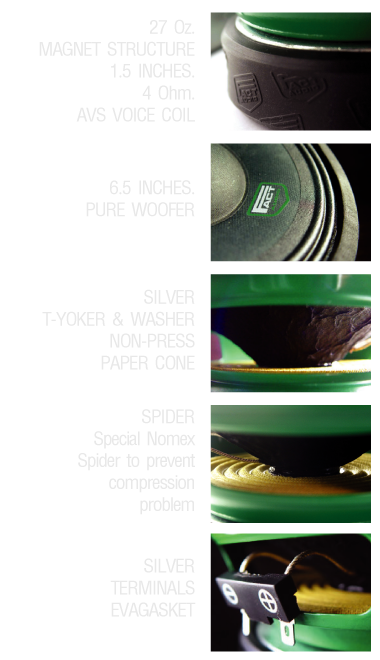

F1-S60S PURE WOOFER
